Hdpe Pipes and Coils

Ramdev Polymers Introduced the most innovative HDPE pipe product BABA HDPE Pipe with a Special Hight quality polymeric lubricated material offering advantages of:

  • Higher flow and low power consumption.
  • Free form fust and ultra violet radiation.
  • Coils as well as Sprinker pipes in the range of 20 mm to 110mm.
  • Leak Free.
  • Energy efficient.


SPECIFICATION

Materials
High Density Polyethylene Polymers Materials.

Product Range

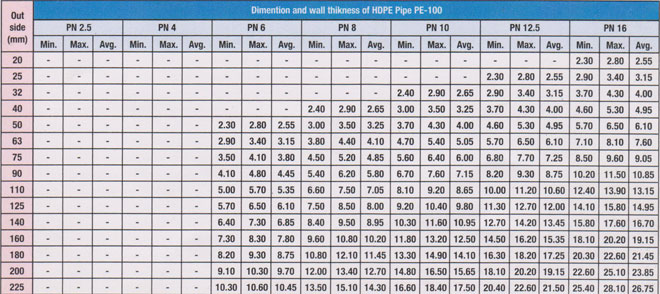

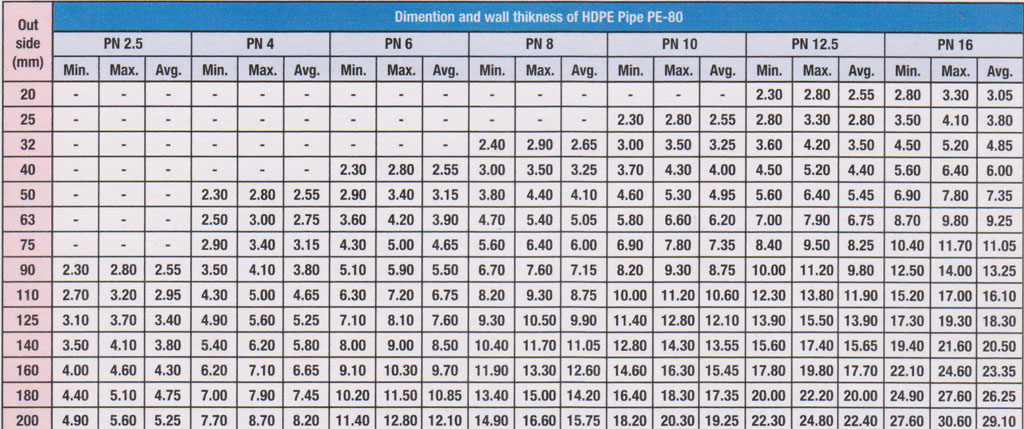

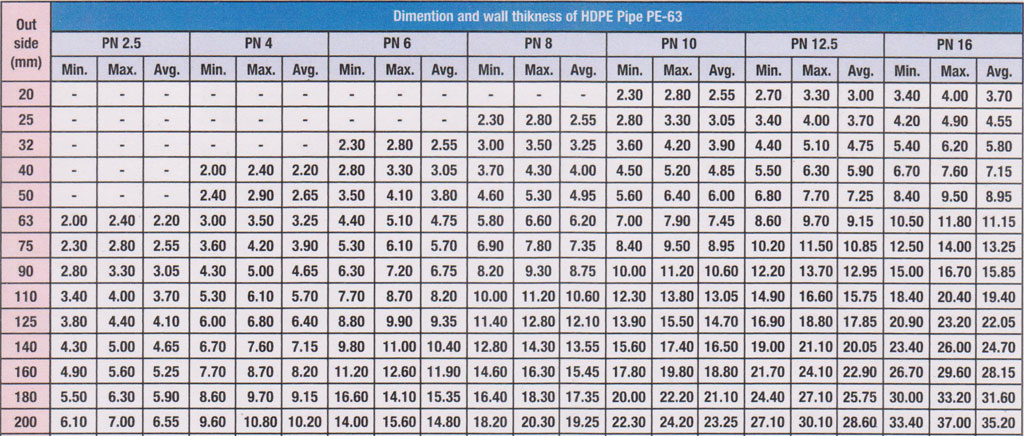

Available in Size 20mm to 250mm outer diameter in various materials (1) PE-63, (2) PE-80 (3) PE-100

Pressure Class
Available in multiple choice of class rating from 2.5, 4 ,6 ,8 ,10 ,12.5 & 16kg/cm2

Colour
Black Colour

Length
Available in Standard length 50,100, 200, 300, 500 & 1000 meter coils depending on the pipes dimensions or large diameter in fixed length of 6 Meter as per customer requirements depending the pipes dimensions.



APPLICATION
  • Drinking Water Supply.

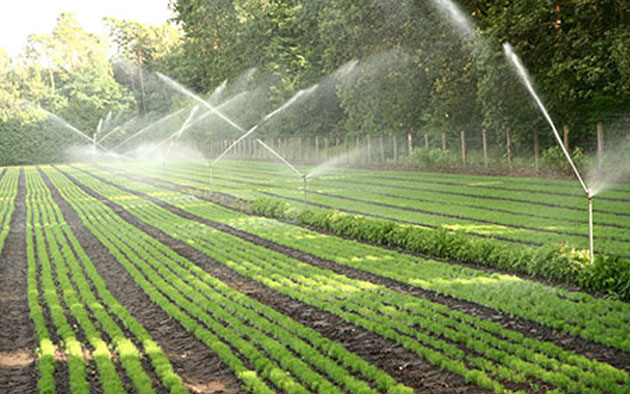

  • Lifting of water for agriculture Irrigation or farm house purpose.
  • Obtain Water through pumps, bore wells using jets and submersible pumps show better performance in tube well boring.
  • Industrial disposal of chemical effluent and waste.

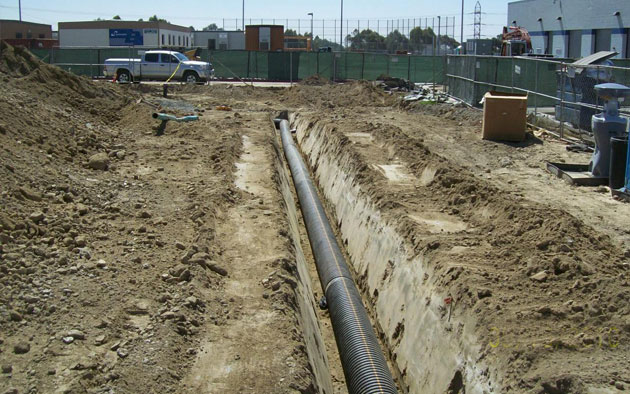

  • Sewerage & drainage systems.
  • Transportation of aggressive fluids chemicals and acid.
  • Water supply mains & distribution Iines.
  • Domestic plumbing and floor heating pipe lines
  • Centrally heated hot water pipeline in building, Hotels, swimming pools.
  • Telecommunication cable ducting.
  • Air conditioning ducting.
  • Portable Water supply in urban area as well as rural area.
  • Gases like natural gas, liquefied gas & fermentation gas and oil distribution supplying lines.
  • Cooling water pipe lines like thermal power equipment.
  • Used for transportation studies of iron, Fly Ash etc.


FEATURES
  • Light in Weight and high tensile strength.
  • Resistance to Corrosion, abrasion & UV radiation.
  • Smooth internal surface finish which have low friction which save energy.
  • Have no effect of weather conditions.
  • Strong and long lasting , Up to 50 years durability.
  • Installed in bore wells without joints.
  • Hard and unbreakable.
  • Low thermal & electrical conductivity.
  • Non-toxic.
  • Perfect weld ability.
  • Safe for lying under water, under soil, under coastal salt usarsines.
  • Can be butt welded at site in minutes making joints very strong.
  • Safe for portable water as raw materials comes with a flood grade certificate.
